Want More Walks? Navigation in a Digital World
20 minute read
What do you do when you want to find more hiking options than those covered by the guidebook? Mick Borroff explores route planning using GPS tracks and aerial imaging.
Walking guidebooks for an area are great to have in the hand and in the rucksack. They offer you much more information than just the routes themselves and are thus invaluable planning tools for a trip.
But however good a guidebook may be it can never be truly comprehensive. Practical realities such as the book size and the author’s time mean that it can only cover a selection of the possibilities available. By definition, these must be drawn from routes that the writer has already walked. Just to give a simple example, Paddy Dillon’s excellent Cicerone guide Walking on Tenerife covers 45 walks but the site GPS wanderlen in Tenerife, set up by two Dutch walkers who have visited the island every year since 2007, features an astonishing 519 walks. Including all these in a guidebook would not be a realistic proposition for any author or publisher and you probably wouldn’t want to carry it either!
So, what do you do when you want to find more hiking options than those covered by the guidebook you already have? Perhaps you have done all the walks close to where you are staying? Maybe you want to find out where the locals go? Maybe you want to walk in an area or reach a summit where there is no guidebook coverage and the available maps have little or no detail about the actual footpaths on the ground?
Apart from the obvious consultation with the locals i.e. tourist offices, walking groups, guides, outdoor gear shops and accommodation owners etc., the other obvious resource is to use the internet. Whilst there are sometimes good route descriptions in English on the net, as often they are in the local language which you may not speak too well. Using Google Translate will give you a flavour of the route but parts of the translation are often ambiguous and the narrative cannot be used as a completely reliable description up to a guidebook standard. A simple example is a Google translation from French that says “Leave the path on the right and then the left …” when the text actually meant “Ignore paths on the right and take the left …” and so you really do need a map annotated with the proposed route to navigate.
With the advent of GPS receivers built into mobile phones and many walkers taking dedicated outdoor GPS devices with them, there are now huge numbers of GPS users. Many hikers are now recording their walks and uploading their tracks to route-sharing sites. Google can be used to search for these websites to identify GPS routes and tracks to download in your area of interest. Typing in the place-name and GPX should get you plenty of hits!
Example Route-Sharing Sites
These can be divided into non-curated and curated collections. The curation process generally standardises the presentation of data about the hike with some degree of quality control.
With non-curated sites, you are at the mercy of whoever has uploaded their track – the details presented vary widely: some are just briefly plotted GPX routes, some are uploads of raw GPX tracks with errors – hence the need to check such downloaded GPX tracks, which we will come to shortly.
Some of the curated sites are excellent with track overlays on large scale topographic mapping with Google Earth imaging, route notes, photographs, blogs and free-to-download GPS tracks in a variety of formats – i.e. like a good guidebook. Others, however, have less content but all have no duplication. The tracks can often be helpfully filtered by length, ascent, duration and activity type. A few examples from the UK and beyond are as follows:
Walkhighlands is an amazing free resource for exploring Scotland. The 2078 walks include a complete inventory of Munros and Corbetts, together with hundreds of easier lower level and coastal walks in every part of the country. If you walk north of the border, you are missing out if you have not explored this site! Good walk descriptions, OS mapping to 1:25k, photos, route downloads and a lively forum makes planning new hikes a treat.
MountainViews is an equally good site covering Ireland.
There are plenty of overseas sites, such as the French site Randogps which currently has over 24,870 tracks to download indexed by region and department, IGN mapping to 1:25k, Google Earth imaging and downloadable routes. The French Visorando site is another excellent example with Belgian and Spanish IGN mapping available too.
Wikilocis the granddaddy of route-sharing sites with over a whopping 14 million outdoor tracks globally! These routes are from a mix of activities: hiking, mountain biking, cycling, snowshoeing, ski touring etc. Perhaps you fancy hiking in South Korea but find that Paddy Dillon has not yet written a guidebook for Cicerone? Look in Wikiloc: over 66,000 walking, hiking and mountaineering routes to choose from, searchable by type (loop or linear), length and difficulty. A variety of mapping options lets you further research your route selection.
GPS Routes and Tracks
Just to clarify some terminology, GPS routes are about where you are planning to go; GPS tracks are about where you (or others) have been. Routes are pre-defined paths generally created from a group of location points in the sequence you plan to navigate them. These are usually created on a computer but can be entered on a GPS device. Tracks are made up of data gathered automatically from your movement while the GPS device is turned on whilst following a route. They are like breadcrumb trails, allowing you to see where you or someone else travelled in the past. Usually you will be using someone else’s downloaded GPS track as your route.
Look at these two paths for a well-known walk from Malham to Malham Tarn via Gordale Scar.
A Route: there is just sufficient detail in this route file to identify and follow the paths on the OS map.
A Track: this track file is much more detailed with many more track points showing the GPS record of the author’s route. Aerial imaging shows a close fit of the track on many of the visible paths but has some GPS artefacts in the vicinity of the steep cliffs at both the foot of Malham Cove and the entrance to Gordale Scar. This is due to the crags blocking some of the direct satellite signals (called masking) and differentially reflected satellite signals (called multipath errors) which we will talk about later.
The data for both GPS routes and tracks are usually held in the generic GPX file format (but there are others). Routes usually have relatively small numbers of waypoints, whereas tracks may have a couple of thousands of track points recorded by the GPS device.
Routes can be easily followed if the available mapping shows the paths taken by the route (often the case in the UK, France or Switzerland for example), but if the mapping shows only vehicle or cart tracks but not footpaths (e.g. often in the case in Spain, Portugal or Ireland) in your area of interest, you will need to use someone else’s GPS track as your route to give you the more detailed information required.
Downloading a GPX Track
Once you have found a website with a walk of interest and located the download page, what next? You should start by downloading the GPS track file, usually in the universal GPX file format to your computer.
Sometimes (e.g. in Wikiloc) you will be given the option to download the author’s full track or a compressed version limited to 500 waypoints. Always choose the full version, since the compression may lead to some confusion when such an abbreviated route is used to navigate on the ground, especially for long or complex routes. Next you should run Google Earth and open the downloaded GPX file as an overlay to see the route displayed on top of the aerial imaging. (Note that Google Earth calls tracks ‘paths’ and exports them as .KML files).
You may also be able to download a .KML or .KMZ file of the same track from the route-sharing site which can be opened directly in Google Earth. This might save you a little time, but the track might be limited to 500 waypoints, missing some detail. I recommend opening the full GPX track in Google Earth if you have the choice.
Note that the GPX file name and the GPX track name are not the same and are independent of one another. They might be the same or you might download a GPX file called Malham Cove.GPX and find that the track inside is called something else e.g. 2019-10-06 17:32:05. Clearly, you need to edit the track name to be able to find it again, since that is what will be displayed in your GPS device and GPX viewer, not the file name. The simplest way to do this is to use a text editor such as Notepad to open the GPX file and edit the track <trk> name field <name>:
e.g. change <name>2019-10-06 17:32:05</nameto <name>Malham Cove</name and save, it’s as easy as that!
On most sites, the GPX tracks are not curated and, unlike a guidebook, are therefore unchecked. Before importing the new route into your GPS unit and rushing off to follow it on the hill you should take the time to do some basic checks, especially if local mapping is not up to OS standard:
- View all the on-line information about the track i.e. photos, map, description, rating, comments, route activity type (e.g. walk vs. scramble vs. cross-country ski route?) to get a feel for it (and possibly look for it on more than one route-sharing site)
- View the route metrics: date, duration, distance, elevation plot, speed
- Year recorded (how long ago was it walked? Could it be less accurate due to old GPS technology/accuracy?) and time of year (what was the season?) Has there been local storm damage reported since?
- In Google Earth, look carefully at the overall plausibility of the route line (sense check) and mix of paths, tracks, roads and pathless terrain
- Look for the presence of GPS artefacts, compressed or careless plotting
The GPX track file may contain movement data: speeds much greater than usual walking rates indicate that the route is probably a mountain biking or cross-country ski route. You can almost certainly walk the former but maybe not the latter. What was the moving average speed compared to the overall average? Does this match your usual pace?
Sense Checking the Walk using Aerial Imaging
Viewing a GPX track over aerial imaging is extremely useful. It allows you to view the terrain crossed by your proposed walk and get a sense of the landscape. Ask yourself lots of questions! What is the terrain like? Does it follow a clearly visible path or track or road that you can see on the aerial image and are these shown on the map? Look at the route in Google Earth 3D mode: does the path go where you would expect it to if you were on the ground? Are there pathless sections? What is the trail mix – e.g. you might not want to do a walk with a very long busy road section. If it crosses a river, but doesn’t use an obvious bridge that you can see on Google Earth, is it due to the bridge having been swept away or the author’s use of a convenient boulder-hopping crossing as a shortcut or a wade? Or is it due to compression of the track, which actually does use the nearby bridge? If a route crosses large boulder fields when there are clear path options visible on the aerial image which skirt them, is it because you are viewing a winter ski-touring or a snowshoeing route?
If it crosses a lake, was it done in winter when it was frozen over? Or is this likely to be an artefact because the GPS receiver lost clear satellite reception (masking and multipath errors) as the lakeside path was at the foot of high cliffs in a canyon (as happened to my GPS track below on a route in the Verdon Gorge in France – my track is shown twice crossing the water in the lower Verdon Gorge and going in a circle midstream despite me remaining on the south bank path at all times!). Some of these questions may be possible to answer by finding another GPS file for the same route from a second website and comparing it.
Also, if the walk crosses roads, you may be able to use Google Earth Street View to look where it leaves/joins the tarmac to see if the route is signposted or waymarked or to look for suitable parking at the start/finish or a convenient pub or bar mid-route etc.
Spurs on the GPX track may be a brief excursion along the wrong path and a return, or could visit a feature not marked on the map or just be to take a comfort break. A Gordian “knot” ” or cloud of track points is often seen at the start of a walk when the GPS is fired up and then there is a delay while everyone gets ready and sets off. It may also be seen when the party is stopped for any length of time e.g. for lunch or to take in the view at a summit - the static GPS device simply records its random circle of uncertainty for half an hour or so – hence the ‘knot’. This is a benign feature of many GPX tracks but may be edited out before the file is shared.
Implausible sections of tracks like the Verdon Gorge and Malham walk examples mentioned above are less-benign GPS artefacts with two causes, both of which dilute the precision of the position fix:
a) masking - loss of some direct satellite signals which have been blocked by high cliffs, reducing the number of satellites the GPS device can see
b) multipath errors - the signal from some of the remaining satellites in view being received directly and others getting first reflected off cliffs before getting to the GPS device. See: http://www.trimble.com/gps_tutorial/howgps-error2.aspx.
Hopefully if you downloaded either of the above tracks you would question their credibility and not attempt to follow the position spikes or loops in these areas! A further check should be undertaken establish the correct line of the path to take. You may well find that the actual path is clearly visible on the aerial image and the track can simply be edited to match it.
It is worth noting here that the GPX track and the linear feature such as a path, track or road may not be perfectly aligned in Google Earth. The precision of the GPX position fix has improved with recent GPS devices and is probably more accurate now than the georeferencing (calibration) of the Google Earth imaging. Indeed, if you look at your route over historical imaging, the image will probably ‘jump’ between years as the georeferencing is not identical. The actual accuracy of Google Earth is a much-discussed point in the research literature, but it is certainly good enough for us to use for navigation and route plotting, as shown in the following example.
In situations where you think the line of the walk could be improved, it is relatively easy to edit and adjust the planned route by adding or removing new points to the path or moving existing ones. This can easily be done in Google Earth by editing the properties of the .KML path and saving the updated .KML file. This updated file can be imported into your GPS viewer and then loaded onto your GPS receiver for use on the ground (conversion back to a GPX file using GPS Visualizer may sometimes be needed).
It is also worth turning on the ‘Photos’ layer in Google Earth to look at people’s images of the area.
Sense Checking the Walk using a Map
If you already have the appropriate digital mapping app on your PC, you can easily look at the GPX file overlaid on the map. If you don’t have digital maps available on your PC, you may be able to view the track by uploading the GPX file to a country’s national mapping or an OpenTopoMap viewer such as GPS Visualizer, or some route-sharing sites e.g. Visorando, which you can then print a map or at least print from a screen shot. Some examples of national map viewers are:
UK - OS http://www.wheresthepath.org.uk/
France - IGN https://www.geoportail.gouv.fr/donnees/carte-ign
Switzerland - TOPO https://map.geo.admin.ch
Spain – IGN http://www.ign.es/iberpix2/visor/
You now need to employ your conventional map reading skills to see what the map can add to your understanding of the proposed route from the mapped topography, just as you would when using a paper map to plan a walk. Maps give you a lot more information which complements the aerial image, so you do need to examine both. For example, a map will show tracks and paths inside a wooded area which may well be hidden under the tree canopy on a satellite image, maps also show rights of way. When using maps from overseas, don’t forget to look at the map legend as the symbols and contour intervals used may be different to those you are used to.
Editing of the track can also be carried out using the map in your GPS mapping software e.g. Garmin BaseCamp, Memory-Map, etc. and using some national map viewers. For example, you may want to move a section of your route to one where right of way is shown on the map or to visit somewhere to get refreshments or combine sections of two separate routes to make a traverse.
Among a host of helpful tips in Pete Hawkins recent Cicerone Extra Blog on navigating when walking abroad he highlights the differences between mapping from different countries with an example taken from the Port Vieux area in the Pyrenees. What he didn’t explore are the additional benefits of looking at the global crowd-sourced mapping from OpenStreetMap (OSM) and aerial imaging from Google Earth.
The data collected by the OSM mapping project just gets richer and richer. Paralleling the growth in the use of GPS-enabled phones, the number of contributing mappers has massively increased and OSM data has really come of age in many areas. Even in the UK, it has paths marked that don’t appear on OS definitive mapping! The data is used in numerous digital vector maps such as OpenTopoMap, OpenCycleMap etc. Many smartphone apps have free OSM-derived mapping layers that you can look at and navigate with. Guru (iOS and Android) and Locus Map (Android) are two good examples.
The following four images (all at the same scale) of the same location on the Franco–Spanish border in the Pyrenees highlight why you should take a look at an OSM-derived map, because of the possibility of finding additional content:
The IGN maps of Spain show few footpaths, however long-established rights of way along tracks such as the Camino del Pueto Viejo in this 2019 example and some long-distance GR routes are mapped.
French mapping generally rivals OS cartography for quality and in this example from 2019 mapping, numerous paths are shown on the map, some highlighted in purple. Two of these highlighted paths are on the Spanish side of the border. However, the footpath running south-west from the Col – the Senda de Puerto Viejo al Pico Viejo) and a shelter at the Col de Vieux – the Abri de Port Vieux de Bielsa are not shown.

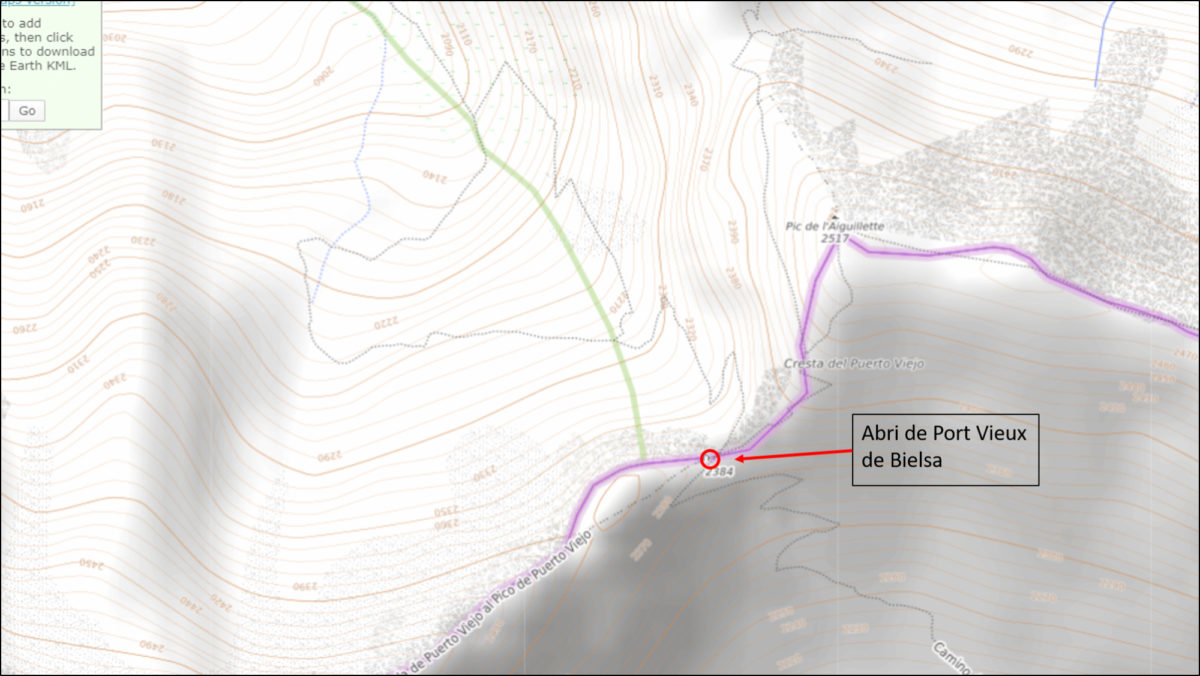

On the other hand, 2019 OpenTopoMap shows the all same paths marked on the French IGN map and both the Senda de Puerto Viejo al Pico Viejo and the shelter. Knowing that there was a shelter there could make a life-saving difference if you were caught in blizzard conditions.
Finally, OSM data isn’t perfect but it can be readily compared with aerial imaging in Google Earth to validate the paths as described above. As you can see, the path network on the OSM-derived mapping agrees very well with the paths on the ground shown on the imaging and the Abri de Port Vieux de Bielsa shelter can be clearly seen. I’d be more than happy to navigate the path network in this example using OpenTopoMap on my phone, even without a Cicerone guidebook in my hand.
Don’t Forget the Paper Map
All you need now is a paper map with the route to take out on the hill together with your compass and your GPS device in case you run out of battery power, lose or break it, etc. As a bare minimum you will be able to print an OpenTopoMap overlaid with your GPX route using GPS Visualizer and a Google Earth image to use. You may be able to print more detailed national topographic maps from your map viewer or mapping software, but if not, you can at least print out a screen shot of the map and route. If you have a mapping GPS, you can put the appropriate digital map onto it along with the GPX route. If you are using a smartphone with a mapping/GPS app, you must check that the required area of mapping is cached (stored) on the phone before setting out so you still have it available when your phone signal has been lost in the hills.
Cicerone Extra readers will know that the publisher has recently taken the welcome step of starting to provide GPS routes to accompany their guidebooks. If there is not a GPS route available yet for the walk you want to do, you have two options:
- search route-sharing sites to try and find a GPX track of the same route to download, as detailed above. This is usually quicker if you search for the walk by place-name. In Wikiloc, use the map to initially look at the shape of the candidate route relative to the map in the book - the eye is good at pattern matching - before deciding whether to download it.
- use the information and the map provided in the guidebook to plot a detailed GPS route yourself, using digital mapping and/or Google Earth (I generally use both, starting with the map, then fine-tuning it in Google Earth). It is sometimes helpful to use the historical imagery provided in Google Earth where the season and lighting may make identification of paths on the ground more visible (but note the accuracy issue mentioned above with the older imaging).
There is a learning curve about as steep as the Matterhorn before you can seamlessly move between the steps in this progress, but if you are serious about navigation and want to find more routes to walk, hike, scramble, mountaineer, snowshoe or ski-tour wherever you are going it is worth the ascent!
